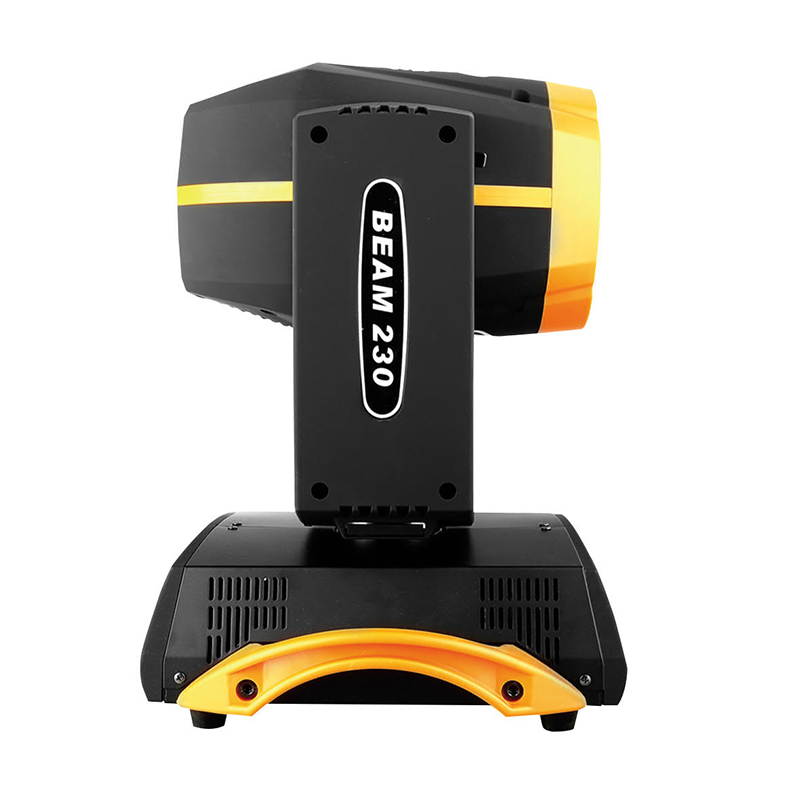

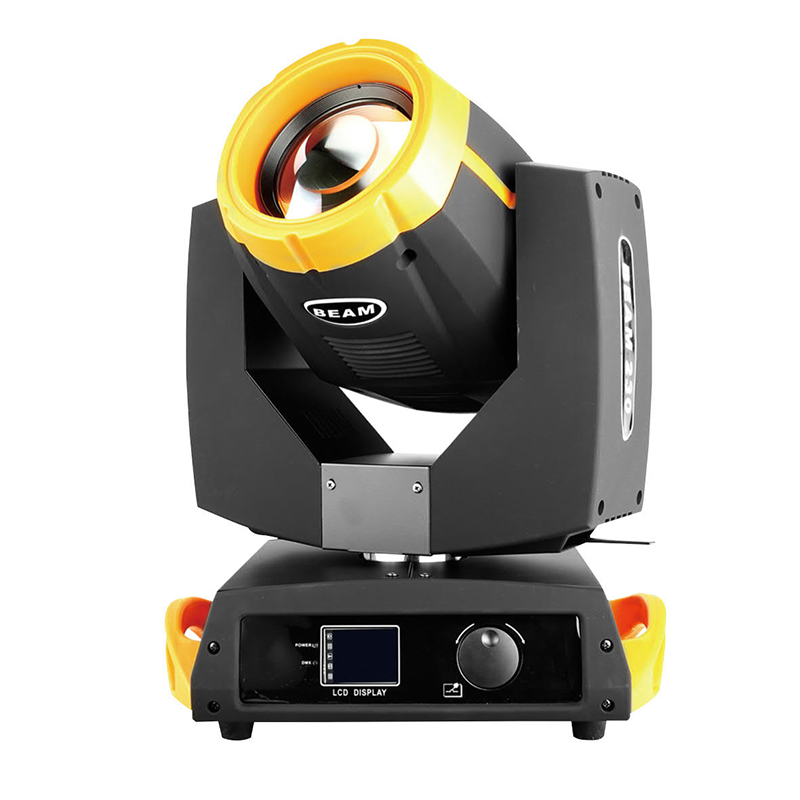

230W Beam Light B

Light Source: OSRAM 7R MSD 230W

Input voltage: AC100-240V 50 / 60HZ

Power consumption: 300W

Display: Touch screen display

Control protocol: DMX512

Channel: 16CH Lens: Yilong triple high-precision optical lens group

Dimming: 0-100% linear

Stroboscopic: The frequency of bilateral knife strobecan be up to 13

times per second and optional Select random strobe and pulse strobe

Beam angle: Horizontal beam angle 0-3.8 °

Prism: 16 prism plus rotating prism effect

Focus: electronic focus atomization: 0% -100% fog

Horizontal scanning: 540 ° (160bit precision scanning)

electronic error correction

Vertical scanning: 270 ° 16bit precision scanning)

Electronic error correction pattern piece: 17 pattern piece,

with two-way rotation of the rainbow Effects and pattern jitter effect

Color plate: 14 color film, with two-way rotation,

Full-color half-color and rainbow effect

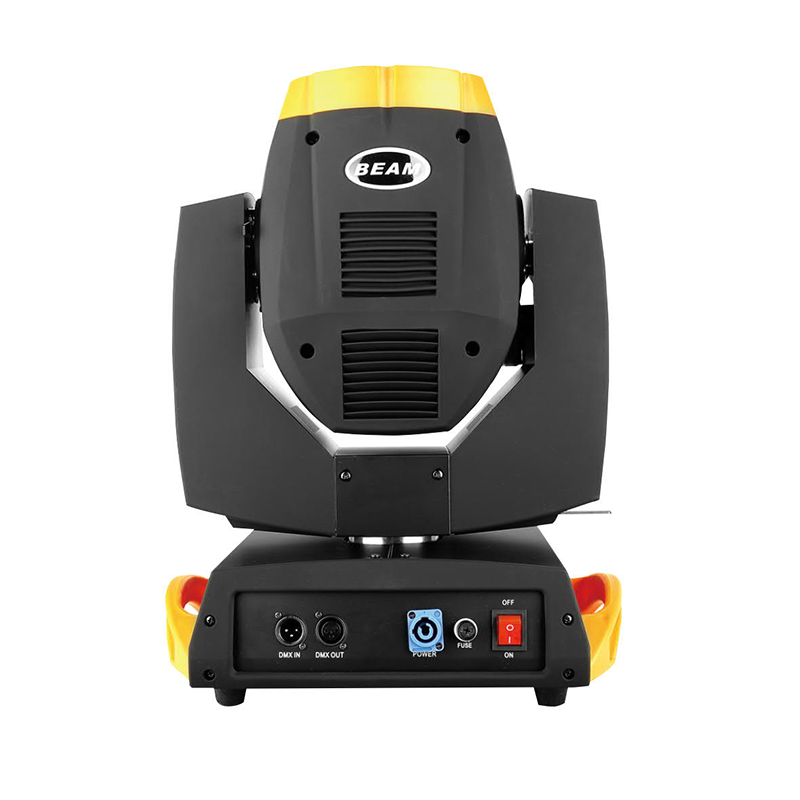

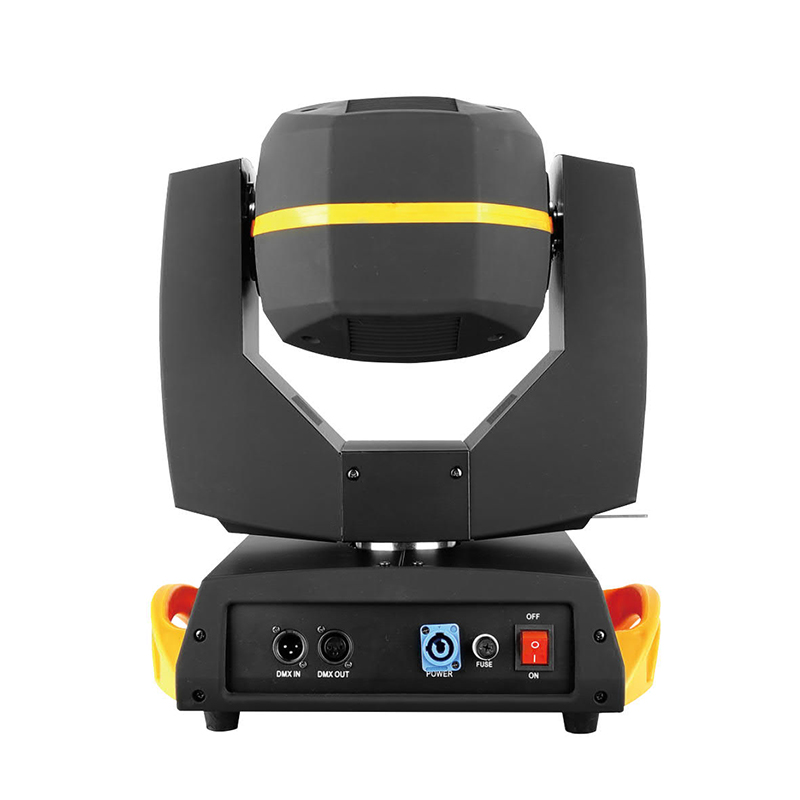

Lamp connection: 3-pin signal line input and output,

power input

Cooling system: cooling fan and aluminum heat sink

Working environment: indoor work environment t

emperature: -20 ℃ ~ 40 ℃

Packing size: 46 × 43 × 56cm

N.W 17KG             G.W: 19KG
